Smart bed for a smart home

Why was this necessary?

I had long ago created an automation that opened the curtains in the morning when there was movement in the living room on weekdays, and on weekends, according to the same sensor, the scenario opened the curtains in the bedroom. Everything works great until one of us gets up early on the weekend and the other stays in bed (I admit, most often it was me 😊). It was necessary to determine and not open the curtains in the bedroom. In the future, you can link this sensor, for example, to turn on night lighting, turn on the air conditioner/fan, etc.

Or when there is nothing left to automate...

Sensors

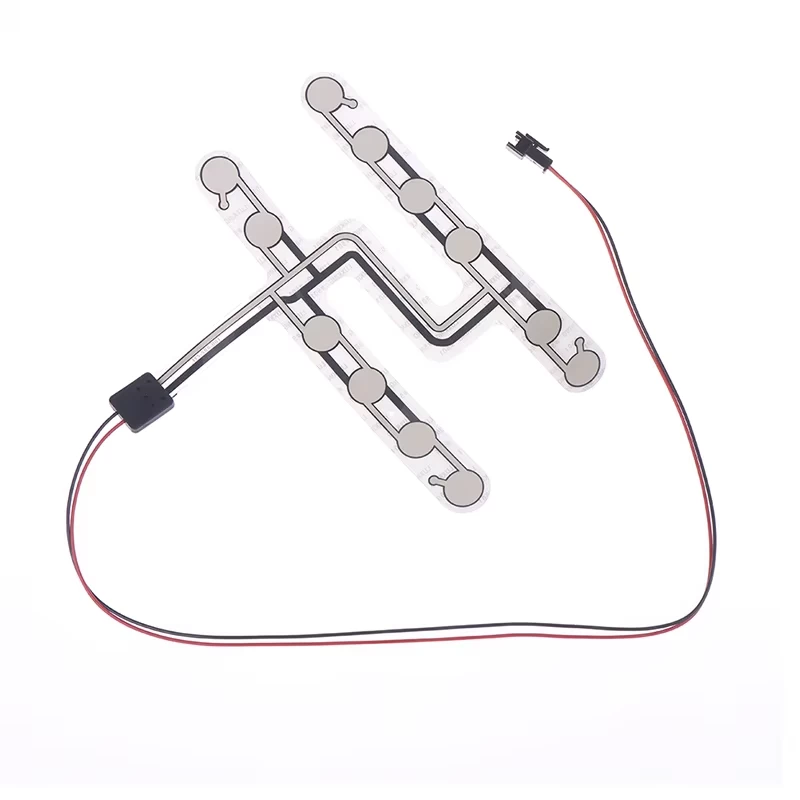

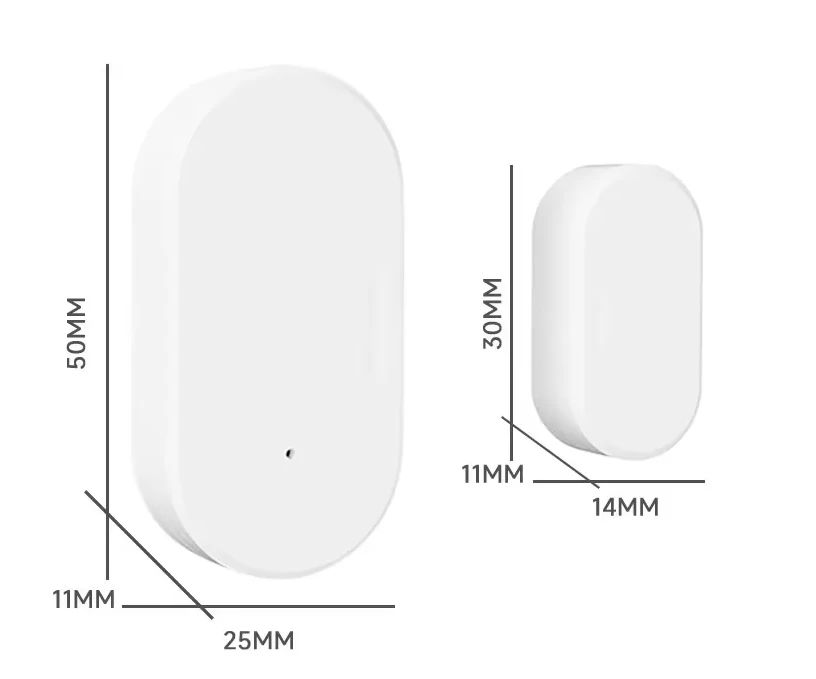

I decided to use the cheapest Zigbee door/window opening sensor, which works on the reed switch principle (the reed switch closes under the influence of a magnetic field). And a pressure sensor in the car seat. I ordered both devices on Aliexpress: door sensor, seat sensor. I ordered all this just in case, especially the seat sensor, I didn't know if its resistance would be enough to close the contacts instead of the reed switch and if it would close under the weight of the mattress.

What was done?

1. Measuring the resistance of the pressure sensor
   First, I measured the resistance at idle, the resistance was about 1MΩ, then under pressure (I sat on it) - full closure. Then I put the sensor under the mattress, the resistance remained close to megaohm.

2. Reed switch dismantling
   Having opened the sensor case, I carefully unsoldered the reed switch.

3. Installing the pressure sensor
   Instead of the reed switch, I soldered the pressure sensor.

4. Integration into the smart home
   After the alteration, the sensor retained its compatibility with the smart home ecosystem. Now it sends a signal not about "opening/closing", but about "pressure presence".

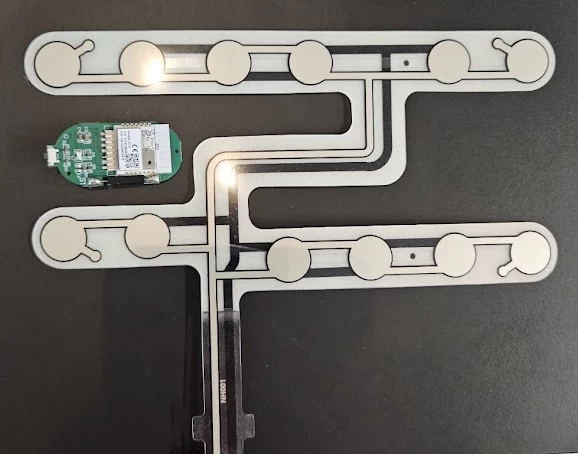

Comparison of pressure sensor size and door sensor

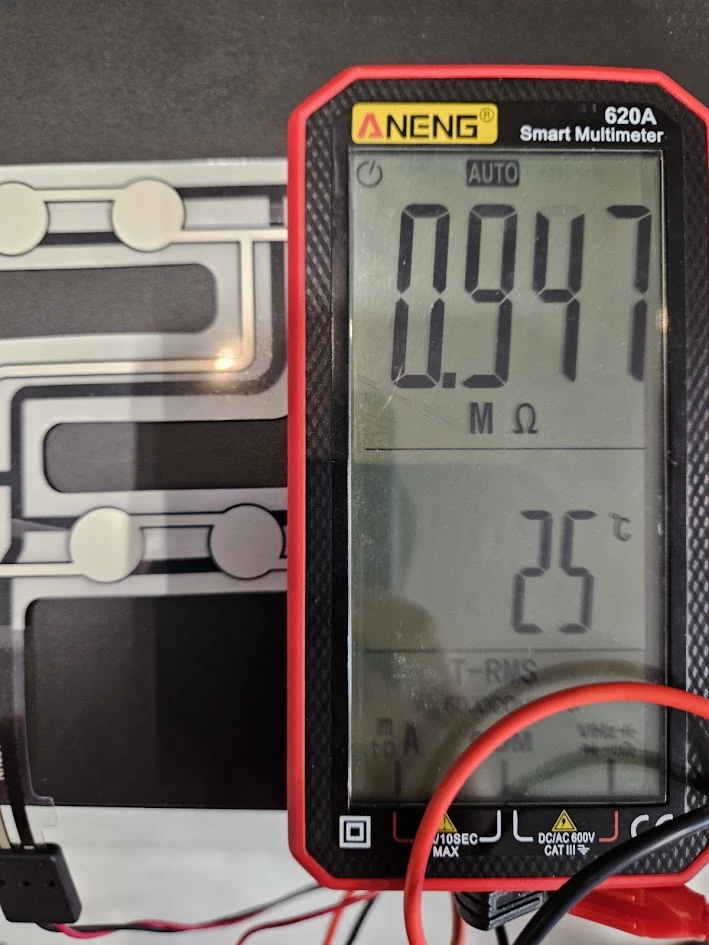

Idle pressure sensor resistance

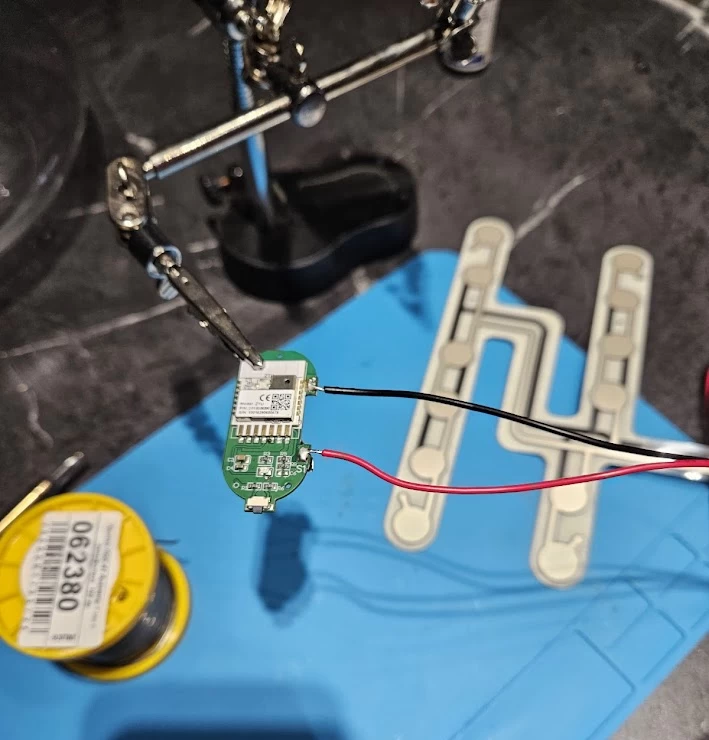

Sealing process instead of reed switch

Automation example for Home Assistant

description: "Open curtains on weekends, in the living room by motion, and then in the bedroom by absence of a person on the bed"
mode: single
triggers:
  - trigger: state
    entity_id:
      - binary_sensor.presence_sensor_living_room
    to: "on"
conditions:
  - condition: time
    weekday:
      - sat
      - sun
    after: "06:00:00"
    before: "13:00:00"
actions:
  - action: cover.open_cover
    metadata: {}
    data: {}
    target:
      area_id: gostinaia
  - wait_for_trigger:
      - trigger: state
        entity_id:
          - binary_sensor.krovat_contact
        from: "off"
        to: "on"
        for:
          hours: 0
          minutes: 1
          seconds: 0
    continue_on_timeout: false
  - action: cover.open_cover
    metadata: {}
    data: {}
    target:
      area_id: spalnia

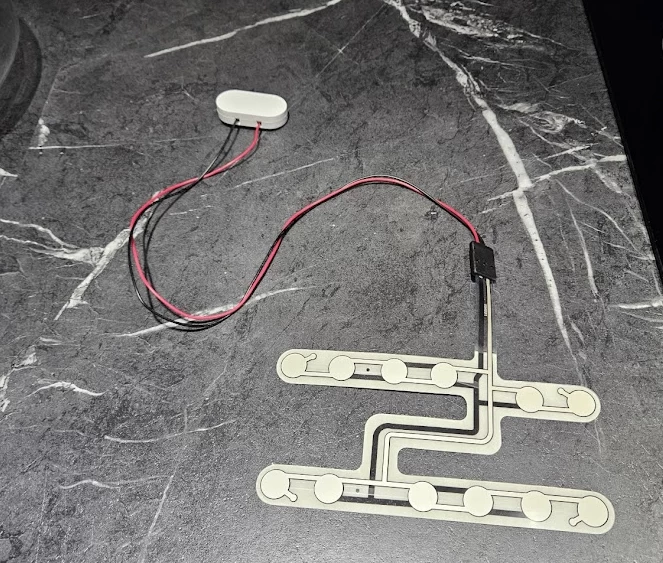

Finished device

Optimization and nuances

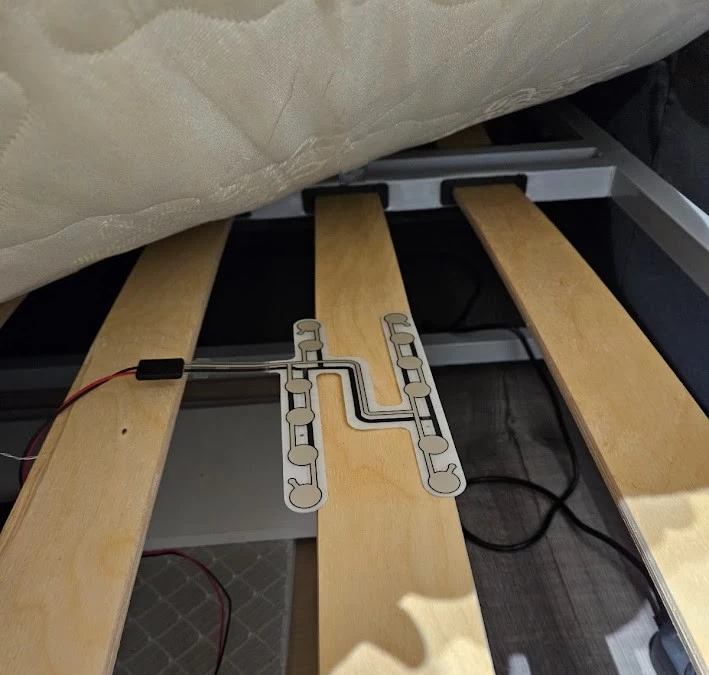

As seen in the photo above, the pressure sensor is not 100% utilized, something needs to be placed under it, for example, glued to a thin sheet of aluminum. The new sensor only works on my side of the bed, you need to buy another pressure sensor and parallel them.

- platform: template
  sensors:
    presence_sensor_on_bed:
      friendly_name: "Presence sensor on bed"
      device_class: presence
      value_template: >-
          {% set last_changed = states['binary_sensor.0xa4c138732178ae70_contact'].last_changed %}
          {% if now().timestamp() - as_timestamp(last_changed) > 2 %}
            {{ 'off' if states('binary_sensor.0xa
